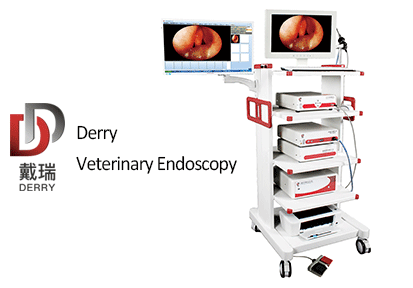

Derry Veterinary Endoscopy
Usage and Clinical Application:
It improves the imaging definition to the full extent, with a clear display which can provide with good camera imaging during the examination, cure, and surgery as well as the camera and video of organs and cavities.
It is can be used cooperatively with various types of fiber endoscopes, rigid endoscopes (laparoscopy, cystoscopy, etc.) at home and abroad, and widely used in many departments, such as gynecology, surgery, internal medicine, ENT, urology surgery and cosmetology, etc.
Product name | 1CCD endoscope camera | Model | Derry |
Horizontal resolution | 700 lines | SNR | >50dB |
Effective pixels | 811(H)*652(V) | Video output | 2*BNC; 1*VGA; 1*DVI |
Scanning system | 2:1 interlaced | white balance | ATW/ AUTO |
Scanning mode | Interlaced scanning | SNR | 2D vox |
Capacity | 35V | Power | AC. 100-220V, 50/60Hz |
Product size | 320*300*95mm | N.weight | 3.85kg |
Fuse | F1AL 250V AC | G.weight | 5.65kg |
Product Features:
1.Fast extinction reaction, high frequency interference resistance and real color reproduction.
2. Handle cable is specially customized, without damage under an experiment of 50,000 times folding by a swing machine.
3. The camera adopts a military connector that can be repeatedly pulled and plugged for 20,000 times.
4. The 3.5m-long handle cable is convenient for clinical use over a long distance.
