Clinical usage：
Use For dogs, cats, horses, cattle and sheep,etc.
Use For the abdomen, chest, clinical heart, peripheral vascular, tendon, small organs, eyeball, reproductive, transrectal and secondary inspection operation
Technical specifications and system overview：
Technical specifications and system overview

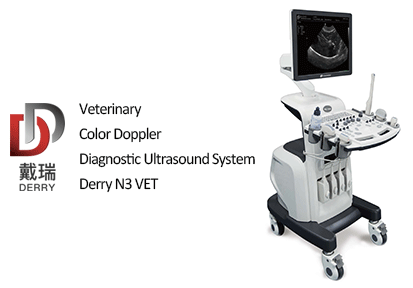

digital color Doppler ultrasound diagnostic system
≥ 15 inch color LCD display, can be lifted up and down, up and down tilt and rotate around
The control panel can be independently rotating and lifting
Digital beam intensifier
Multiple beam synthesis
Probe interfaces≥3
Spatial compound imaging
Speckle noise suppression imaging
Frequency of compound imaging
Tissue specific imaging
Two-dimensional model
Harmonic imaging mode
M-Mode
Color Doppler imaging (including color, energy and direction of energy Doppler mode)
Spectrum Doppler imaging (including Doppler pulse, high pulse repetition frequency)
＊Continuous wave Doppler imaging
＊Real double contrast imaging
＊panoramic ultrasound imaging
＊A key to optimize the image function (including applied to two-dimensional, color and spectral mode)
＊Full screen magnification
＊Local amplification (support front-end and back-end amplification)
Support languages, including English, Chinese (keyboard input, operation panel notes, etc.)
＊Support languages, including English, Chinese (keyboard input, operation panel notes, etc.)
Annotation, body position and measurement / analysis / Report
1. Support Chinese and English notes, custom notes
2. Routine measurement software package
Doppler measurement
Color velocity measurement
Automatic spectrum measurement
TEI index measurement
Left ventricular function measurement
Automatic measurement of cardiac intima
3. The software package of the whole section: abdomen, gynecology, obstetrics, urinary, small organ, blood vessel, nerve, emergency department
Movie playback and original data processing
1. All modes available
2. Support manual, automatic playback
3. Support 4D movie playback
4. Support store and forward backward storage, the length of time can be preset and stored more than 5 minutes of the movie backwards
5. Support image contrast (dynamic and static)
6. Support image post processing
One key case management system
7. Check the storage and management (built-in ultrasound workstation): greater than or equal to 200g hard drive, built-in ultrasound workstation, export multiple image formats: dynamic image, static image, to PC format derived directly, no special software is required to observe the image directly on an ordinary PC
Connectivity requirements
DVD R/W burning CD-ROM
More than 5 USB interface
Video / audio input / output
Support ECG signal
Support network connection
supported by DICOM 3.0
System technical parameters and requirements
1. Two-dimensional model
Digital sound beam forming apparatus
Digital full dynamic focus, digital variable aperture and dynamic trace,A/D≥12 bit
Reception mode: transmitter and receiver channel is more than 1024 times, signal parallel processing
Scan line: each frame line density is more than 230 ultrasonic line
AE: launch more than 8 section of beam focusing
Scanning frequency:
Electronic convex array: ultrasonic frequency 2.0- 5.5 MHz
＊The maximum depth of more than or equal to 36cm (display picture proof)
TGC: ≥8
The two-dimensional gray scale:：≥256
＊Dynamic range: 160 (visual adjustable picture proof)
Gain adjustment: B/M/D adjustable separately,≥100
Pseudo color map: ≥8
2. color doppler image
Including speed, energy, direction, energy display, etc.
Display mode:：B/C、B/C/M、B/POWER、B/C/PW
＊Sampling frame deflection: ≥±20 degree (Linear array probe)
3. Spectrum Doppler model
Display mode：B, PW，B/PW, B/C/PW, B/CW, B/C/CW, etc.
display control：Inversion, zero shift, B refresh, D extension, B/D extension, etc.
Maximum speed: 7.60m/s (continuous Doppler speed: more than 30m/s)
Minimum speed: less than 1 mm /s (non noise signal)
Sampling volume: 0.5-20mm
The deflection angle of more than or equal to - 20 degrees (probe)
Zero level mobile: 8
Fast angle correction
Support spectrum automatic measurement
probe specifications
1. optional probe type: phased array, electronic fan sweep, convex array, linear array, Uchi, volume probe
2. probe frequency: frequency bandwidth MHz 2.0-15 (dependent on different probes)
All probes are broadband frequency conversion probe
Two dimensional, harmonic, color and spectral Doppler mode, respectively, independent variable frequency
convex array, bandwidth: 2.0-5.5MHz
puncture guide: convex array with multiple angle puncture guide function
common probe
categories | Probe model | Frequency (MHz) (Note: H expressed harmonic frequency)
|
Linear array probe | 7L4A（7.5MHz） | 5.0/7.5/10/H8.0/H10.0MHz |
Abdominal micro convex probe | 6C2（6.5MHz） | 4.0/5.0/6.5/8.0/H6.5/H8.0 |
phased array probe | P7-3（5MHz） | 4.0M/5.0M/6.2M/7.0M/H5.7M/H6.2M/H7.0M |
acoustic power output regulation: B/M, color, spectrum Doppler output power can be selected and adjusted
peripherals and accessories
＊supports black and white, color and text printers
＊support pedal switch
＊supports physiological signals: ECG
＊laser bar code scanner
